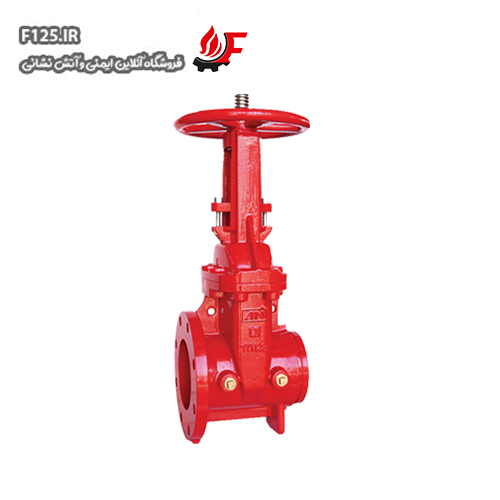

OS&Y Gate Valve ANI AV-OG-FG300 ,

Nominal Pressure: 300PSI
Flange Standard: ASME / ANSI B 16.1 Class 125 or ASME / ANSI B 16.42 Class 150 or BS EN 1092-2 PN 16 or GB / T9113.
Sizes: 2 1/2″, 3″, 4″, 5″, 6″, 8″, 10″, 12″
Face to Face Standard: ASME B16.10
Working Pressure: 300 PSI (Maximum Testing Pressure 600 PSI) conforms to UL 262
Working Temperature: 80C° / 176°F
Coating Details: Epoxy coated interior and exterior by Electrostatic Spray or coating upon request NPT plug on body with 2 operating nuts
Certified lead-free by NSF / ANSI 61 & NSF / ANSI 372 is available
Approval: UL
